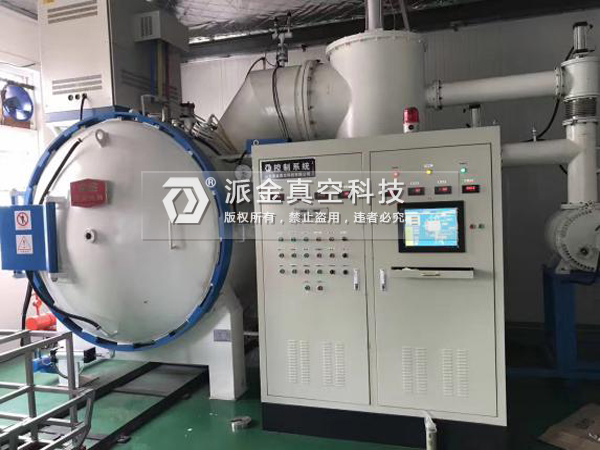

單室臥式/立式回火真空爐
適用于工模具鋼、高速鋼、不銹鋼等材料的淬火后回火處理；不銹鋼、鈦及鈦合金、有色金屬等材料的固溶后時效處理；有色金屬的再結晶時效處理。
分享商品：
銷售電話：15318905266
單室臥式/立式回火真空爐
產品名稱：單室臥式/立式回火真空爐
Name:Single chamber horizontal/vertical tempering vacuum furnace.
PJH-規格：見技術參數/PJH- specifications: Technical parameters attached
用途：適用于工模具鋼、高速鋼、不銹鋼等材料的淬火后回火處理；不銹鋼、鈦及鈦合金、有色金屬等材料的固溶后時效處理；有色金屬的再結晶時效處理
Application: It is Suitable for quenching and tempering treatment of die steel, high speed steel, stainless steel and other materials; solid solution post-aging treatment of stainless steel, titanium and titanium alloys, non-ferrous metals, etc.; recrystallizing aging treatment of non-ferrous metals。
特點 /characteristic：
加熱元件采用多區控溫布置，溫度均勻性達±
The heating element is arranged by multi-zone temperature control, and the temperature uniformity is up to ±
1. 采用金屬屏為加熱室隔熱層
Using metal screen as heat insulation layer of heating chamber.
2. 對流風機攪拌循環，加熱時間短，熱效率高
The mixing cycle of countercurrent fan is short in heating time and high in thermal efficiency.。
3. 編程工藝靈活輸入，機械動作穩定可靠，故障自動報警/顯示
Flexible input of programming process, stable and reliable mechanical action, automatic alarm / display of fault.
4. 風機變頻驅動、九點測溫
Fan frequency conversion drive, nine point temperature measurements。
5. 全智能化工業計算機控制系統并有一套手動操作系統
Fully intelligent chemical industry computer control system and a manual operating system。
6. 操作簡潔、編程工藝靈活輸入、機械動作穩定可靠
Simple operation, flexible input of programming process, stable and reliable mechanical action.
7. 手動/半自動/自動 故障自動報警/顯示
Manual/ semi-automatic/ automatic fault automatic alarm/ display.
配置選擇/Configure select:
產品 規格/ Specifications：
注：特殊規格要求可根據客戶要求定制
Note: Special specification requirements can be customized according to customer requirements
以下參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準
The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement.
|
參數/型號 Parameter/ Model |
PJ-H446 |
PJ-H557 |
PJ-H669 |
PJ-H7711 |
PJ-H8812 |
PJ-H9916 |
|
有效熱區W×H×L Effective hot zone |
400×400×600 |
500×500×700 |
600×600×900 |
700×700×1100 |
800×800×1200 |
900×900×1600 |
|
裝載重量 （KG） Load weight |
200 |
300 |
500 |
800 |
1200 |
2000 |
|
最高溫度 （℃） Max.temprature |
750 |
750 |
750 |
750 |
750 |
750 |
|
爐溫均勻性 （℃） Furnace temperature uniformity |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
|
真空度 （Pa） Vacuum degree |
4.0 E -1/ 6.7 E -3 |
4.0 E -1/ 6.7 E -3 |
4.0 E -1/ 6.7 E -3 |
4.0 E -1/ 6.7 E -3 |
4.0 E -1/ 6.7 E -3 |
4.0 E -1/ 6.7 E -3 |
|
壓升率 （Pa） Pressure rising rate |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|
氣冷壓力 （bar） Air cooling pressure |
2 |
2 |
2 |
2 |
2 |
2 |
|
冷卻氣體（99.995％） Cooling gas |
N2/Ar/He |
N2/Ar/He |
N2/Ar/He |
N2/Ar/He |
N2/Ar/He |
N2/Ar/He |
