首頁 > 產品中心 > PJRCL熱處理真空爐系列 > PJY2系列油淬真空爐

雙室油淬加壓氣冷真空爐

主要用于合金鋼、合金結構鋼、工模具鋼、彈簧鋼、軸承鋼、不銹鋼、精密合金鋼等材料的光亮淬火、調質及磁性材料的燒結，光亮退火及真空釬焊。

分享商品：

銷售電話：15318905266

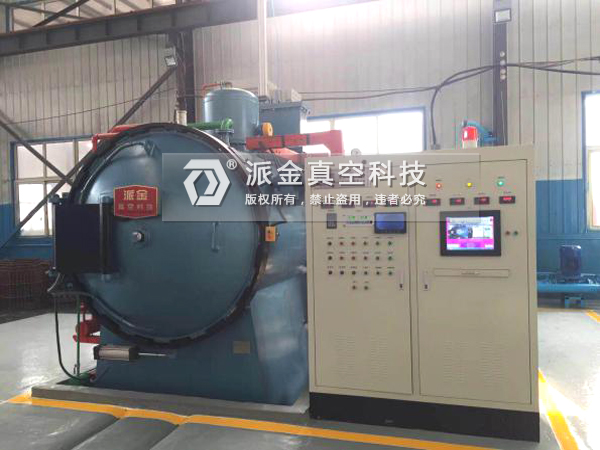

雙室油淬加壓氣冷真空爐

產品名稱：雙室油淬加壓氣冷真空爐

Name: Double chamber oil quenching pressurized gas cooled vacuum furnace

PJY2-規格：見技術參數 /PJY2- specifications: Refer to technical parameters

用途：主要用于合金鋼、合金結構鋼、工模具鋼、彈簧鋼、軸承鋼、不銹鋼、精密合金鋼等材料的光亮淬火、調質及磁性材料的燒結，光亮退火及真空釬焊

Application: It is mainly used for bright quenching, quenching and tempering of alloy steel, alloy structure steel, die steel, spring steel, bearing steel, stainless steel, precision alloy steel, sintering, bright annealing and vacuum brazing of alloy steel, alloy structure steel, die steel, spring steel, bearing steel, stainless steel, precision alloy steel, etc.

特點 /characteristic：

1.加熱元件沿加熱室圓周360度均勻布置，溫度均勻性達±5℃

The heating element is uniformly arranged along the circumference of the heating chamber by 360 degrees, and the temperature uniformity is up to about 5 degrees ℃.

2.加熱室和油淬室分開，可連續生產

The heating chamber and the oil quenching chamber are separated and can be produced continuously.。

3.油攪拌機構變頻調速且?guī)в袑Я餮b置，冷卻均勻性好、工件變形小

Oil mixing mechanism variable frequency speed regulation with flow guide, good cooling uniformity, small workpiece deformation.

4. 具有恒溫淬火/等溫淬火/對流加熱/真空分壓

Constant temperature quenching/ austempering/ convection heating/ vacuum partial pressure

5. 機械動作穩定，承載量重，料車自動運行

The mechanical action is stable, the bearing capacity is heavy, and the material vehicle runs automatically.

6. 全智能化工業計算機控制系統并有一套手動操作系統

Fully intelligent chemical industry computer control system and a manual operating system。

7.操作簡潔編程工藝靈活輸入機械動作穩定可靠

The operation is simple and the programming process is flexible and the mechanical action is stable and reliable.

8.手動/半自動/自動故障自動報警/顯示

Manual/ semi-automatic/ automatic fault automatic alarm/ display

配置選擇/Configure select:

爐門：

Furnace door:

回轉式

Rotary

平開式

Flat type

垂直升降式

Vertical lifting type

中間隔熱門：Middle septum hot：

機械傳動 Mechanical drive

氣動 /Pneumatic

真空淬火油流動方式： Vacuum quenching oil flow mode：

漿葉攪拌

Pulp blade stirring

噴嘴噴射

Nozzle injection

二者疊加

Superposition of the two

爐膽/Flue：

石墨加熱元件與石墨氈復合屏合成結構；

Synthesis structure of Graphite heating element and Graphite felt Composite screen

鉬加熱元件與金屬隔熱屏合成結構；

The composite structure of Mo heating element and metal thermal insulation screen;

鎳鉻合金帶加熱元件與不銹鋼屏合成結構；

Synthesis structure of Ni-Cr Alloy Strip heating element and stainless Steel screen

氣冷結構：

Air-cooled structure：

內置換熱器

Built-in heat exchanger

外置換熱器

External heat exchanger

真空泵組和真空計；

Vacuum pump set and vacuum gauge：

進口

Imported

高品質國產

High quality

Made in China

真空度：

Vacuum degree：

高真空

High vacuum

中真空

Medium vacuum

PLC:

西門子

Siemens

歐姆龍

OMRON

三菱

Mitsubishi

溫控儀表

Thermostat meter：

歐陸

EUROTHERM

導電

Electric conduction

熱電偶 :

Thermocouple：

S型分度號

S-type dividing number

記錄儀 :

Grapher :

有紙記錄儀

Paper recorder

無紙記錄儀

Paperless recorder

人機界面:

Human-computer interface

模擬屏

Analog screen

計算機觸摸屏

Computer touch screen

電器元件

Electrical component：

高品質國產

High quality

Made in China

施耐德

Schneider

西門子

Siemens

產品 規格/ Specifications：

注：特殊規格要求可根據客戶要求定制

Note: Special specification requirements can be customized according to customer requirements

以下參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement

參數/型號 Parameter/ Model	PJ-Q557	PJ-Q669	PJ-Q7711	PJ-Q8812	PJ-Q9916
有效熱區W×H×L Effective hot zone	500×500×700	600×600×900	700×700×1100	800×800×1200	900×900×1600
裝載重量（KG） Load weight	300	500	800	1200	2000
最高溫度（℃） Max.temprature	1350	1350	1350	1350	1350
爐溫均勻性（℃） Furnace temperature uniformity	±5	±5	±5	±5	±5
真空度（Pa） Vacuum degree	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3
壓升率（Pa） Pressure rise rate	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
移送時間（S） Transfer time	≤10	≤10	≤15	≤25	≤30
冷卻氣壓 Cooling pressure	2	2	2	2	2
冷卻氣體（99.995％） Cooling gas	N2/Ar	N2/Ar	N2/Ar	N2/Ar	N2/Ar
